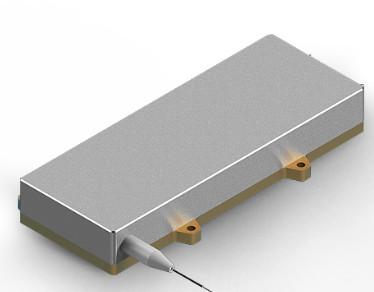

Grey 976nm 700w Fiber Coupled Diode Laser 0.22na

Product Categories

BWT Beijing Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : China

Brand Name : BWT

Certification : ISO9001

Model Number : K976DNERN-700.0W

MOQ : 1 Piece/Pieces

Delivery Time : 4-8weeks

Payment Terms : T/T

Supply Ability : 100,000/year

output power : 700W

wavelength : 976nm

Fiber core diameter : 200μm

Optical ﬁber numerical aperture : 0.22NA

Applications : Fiber laser pump source

name : 976nm-700W

Contact Now

976nm-700W

Features:

Applications:

Specifications(25℃)		Symbol	Unit	K976DNERN-700.0W
Specifications(25℃)		Symbol	Unit	Minimum	Typical	Maximum
Optical Data	CW-Output Power	Po	W	700	-	-
	Center Wavelength	λc	nm	976±3
	Spectral Width (FWHM)	△λ	nm	6
	Wavelength Shift with Temperature	△λ/△T	nm/℃	-	0.3	-
Electrical Data	Electrical-to-Optical Efficiency	PE	%	50	-	-
	Threshold current	lth	A	-	1.5	-
	Operating current	lop	A	-	30	31
	Operating voltage	Vop	V	-	45.6	47
	Slope Efficiency	η	W/A	-	24.5	-
Fiber Data	Core diameter	Dcore	μm	-	200	-
	Cladding Diameter	Dclad	μm	-	220	-
	Numeric Aperture	NA	-	-	0.22	-
	Fiber Length	L	m	-	2	-
	Fiber Loose Tubing Diameter	-	mm	-	0.9	-
	Minimum Bending Radius	-	mm	88	-	-
	Fiber termination	-	-	-	None	-
Feedback lsolation	Wavelength Range	-	nm	1020-1200
Feedback lsolation	lsolation	-	dB	-	30	-
Others	ESD	Vesd	V	-	-	500
	Storage temperature	Tst	℃	-20	-	70
	Lead Soldering Temp	Tls	℃	-	-	260
	Lead Soldering Time	t	sec	-	-	10
	Operating case temperature	Top	℃	20	-	30
	Relative Humidity	RH	%	15	-	75
